愛普生推出的無源貼片晶振很適合可穿戴設備Q22FA1280023000，無處不在的數字技術,寬帶技術在世界的每個角落流傳開，在這個全球競爭的時代，能夠快速的將完美的晶振解決方案給到用戶是成功的關鍵。科技帶來創新，在頻率控制領域，石英晶體諧振器元器件經常要根據用戶的個別要求或原型開發要求來定制，還要在幾周甚至一個月內被反復使用，但即使這樣也未必能滿足設計者的要求。為了滿足顧客的需要,EPSON遵循既定的3D戰略，擴充定時器件，傳感器件，光學器件，三類元器件產品進行“水平展開”并依托三類產品組合開拓“縱向發展”，提供領先市場的具有卓越品質的產品。

Product Number	LxWxH	進口晶振Model	Frequency	CL Value	Freq.tol. @+25°C
Q22FA1280018600	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	18 pF	+/-50 ppm
Q22FA1280018700	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	16 pF	+/-30 ppm
Q22FA1280019100	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	8 pF	+/-10 ppm
Q22FA1280019700	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	7 pF	+/-10 ppm
Q22FA1280020100	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	18 pF	+/-10 ppm
Q22FA1280020200	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	6.7 pF	+/-10 ppm
Q22FA1280021300	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	10 pF	+/-30 ppm
Q22FA1280021400	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	10 pF	+/-30 ppm
Q22FA1280021500	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	10 pF	+/-30 ppm
Q22FA1280021800	2 x 1.6 x 0.5mm	FA-128	30.000000 MHz	9 pF	+/-10 ppm
Q22FA1280021900	2 x 1.6 x 0.5mm	FA-128	30.000000 MHz	6 pF	+/-30 ppm
Q22FA1280022200	2 x 1.6 x 0.5mm	FA-128	20.000000 MHz	10 pF	+/-30 ppm
Q22FA1280022500	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	9 pF	+/-30 ppm
Q22FA1280022600	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	8 pF	+/-10 ppm
Q22FA1280022700	2 x 1.6 x 0.5mm	FA-128	37.400000 MHz	10 pF	+/-10 ppm
Q22FA1280022900	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	9 pF	+/-10 ppm

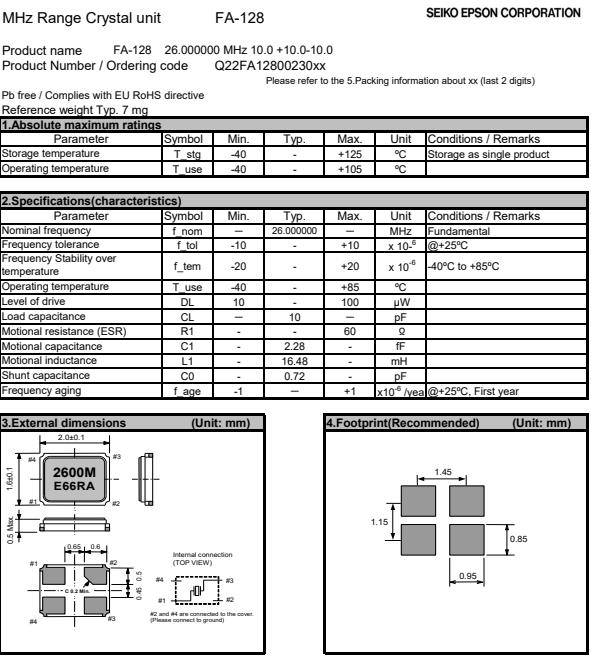

Q22FA1280023000	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	10 pF	+/-10 ppm
Q22FA1280023200	2 x 1.6 x 0.5mm	FA-128	20.000000 MHz	9 pF	+/-10 ppm
Q22FA1280023300	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	6 pF	+/-30 ppm
Q22FA1280023400	2 x 1.6 x 0.5mm	FA-128	16.000000 MHz	9 pF	+/-10 ppm

在盛產電子元件全球較為信賴的日產品牌，全球壓電晶體企業排名中，愛普生晶振占居首位。寬帶話，一個無處不在的先進的網絡市場。在各類中斷都可經過LAN（局域網），WAN（城域網）實現全球信息傳輸?shù)沫h(huán)境下，石英晶體器件已經成為核心設備。市場需求正在推進的速度比以前想象的走向。

Product Number	LxWxH	Model	Frequency	CL Value	Freq.tol. @+25°C
Q22FA1280023600	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	18 pF	+/-30 ppm
Q22FA1280023800	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	18 pF	+/-30 ppm
Q22FA1280024100	2 x 1.6 x 0.5mm	FA-128	30.000000 MHz	10 pF	+/-10 ppm
Q22FA1280024200	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	10 pF	+/-30 ppm
Q22FA1280024400	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	10 pF	+/-15 ppm
Q22FA1280025000	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	9 pF	+/-20 ppm
Q22FA1280025200	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	12 pF	+/-30 ppm
Q22FA1280026100	2 x 1.6 x 0.5mm	FA-128	20.000000 MHz	7 pF	+/-10 ppm
Q22FA1280026500	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	18 pF	+/-10 ppm
Q22FA1280026700	2 x 1.6 x 0.5mm	FA-128	30.000000 MHz	10 pF	+/-30 ppm
Q22FA1280027100	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	8 pF	+/-30 ppm
Q22FA1280028400	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	12 pF	+/-30 ppm
Q22FA1280029800	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	20 pF	+/-30 ppm
Q22FA1280030000	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	10 pF	+/-10 ppm
Q22FA1280030100	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	12 pF	+/-30 ppm
Q22FA1280030200	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	10 pF	+/-30 ppm
Q22FA1280030300	2 x 1.6 x 0.5mm	FA-128	36.000000 MHz	8 pF	+/-10 ppm
Q22FA1280030400	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	8 pF	+/-10 ppm
Q22FA1280030500	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	10 pF	+/-10 ppm
Q22FA1280030800	2 x 1.6 x 0.5mm	FA-128	16.000000 MHz	12 pF	+/-10 ppm

日本精工愛普生株式會社一直以來誠信經營，其所生產的出口晶振質量被廣大生產廠家認可，在全世界的晶振行業里排行前十，研發的小體積晶振在中國大陸地區非常暢銷，廣為人知的產品型號就有MC-146晶振，F(xiàn)C-135晶振，F(xiàn)C-13A，F(xiàn)C-12D等愛普生晶振料號，尺寸從7050mm，5032mm，3225mm，2520mm，到最小的2016mm和2012mm，愛普生一直在為各領域的生產商提供最好最符合要求的石英晶振。隨著發展潮流，生產商越來越不滿足于中低頻率。
