更多>>XCO時鐘振蕩器CO1100-16.000MHZ-T通訊設備專用晶振
來源：http://www.xckfq.com.cn 作者：康華爾電子 2023年04月28

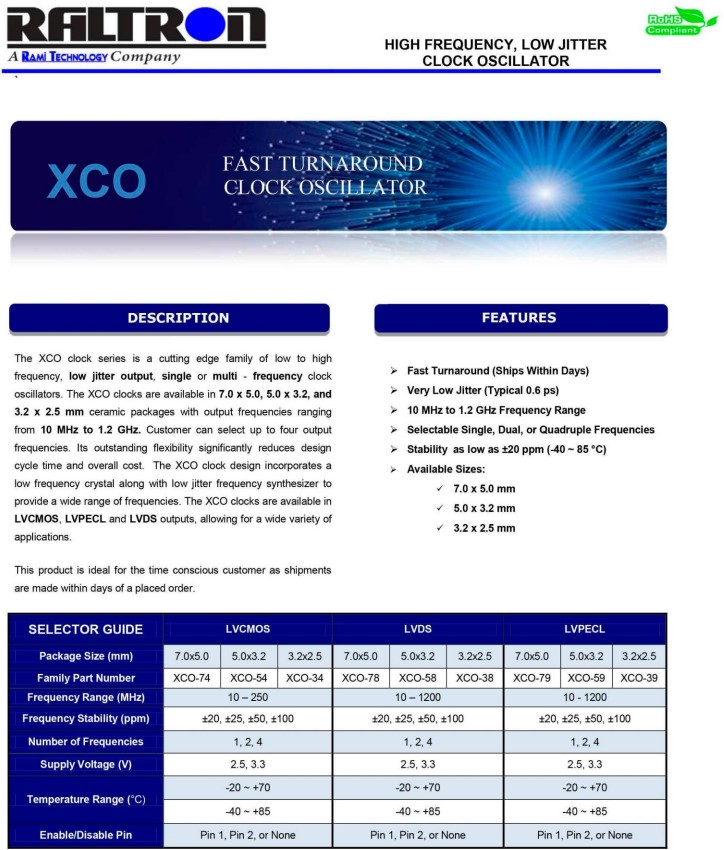

美國Raltron拉隆晶振通過紐約客電子公司提供XCO系列時鐘振蕩器，這是一個很好的替代解決方案。XCO時鐘晶振系列是一個尖端的低頻到高頻、低抖動輸出、單頻或多頻時鐘振蕩器系列。XCO提供7.0x5.0mm毫米、5.0x3.2mm毫米和3.2x2.5mm毫米陶瓷封裝，六腳貼片晶振，輸出頻率范圍為10MHz至1.2GHz，電壓范圍為2.5V和3.3V，頻率穩定性選項范圍為20PPM至100PPM。這種設計的高度靈活性大大減少了設計周期和總成本。XCO時鐘設計結合了一個低頻晶體和hitter頻率合成器，以提供寬范圍的頻率。XCO時鐘支持LVCMOS、LVPECL和LVDS輸出差分晶振，支持廣泛的應用。XCO時鐘振蕩器CO1100-16.000MHZ-T通訊設備專用晶振
特點和優勢：
快速周轉(幾天內發貨)
非常低的抖動(典型值0.6ps)
10MHz至1.2GHz頻率范圍
可選單頻、雙頻或四頻
穩定性低至20ppm (-40至+85°C)
可用尺寸：7.0x5.0mm、5.0x3.2mm、3.2x2.5mm有源晶振
應用：微處理器，微控制器，生產信息控制系統，中央處理器（central processing units的縮寫）
| 元器件詳情 | 頻率 | 頻率穩定性 | 電源電壓 | 包裝 |
| CO4305-25.000-EXT-T-TR | 25MHz | ±50ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO4 Series 25 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||
| CO4305-25.000-T-TR | 25MHz | ±50ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO43 系列 25 MHz 7 x 5 mm 3.3 V ±50 ppm 表面貼裝 時鐘振蕩器 | ||||
| C01100-66.666MHZ | 管裝 | |||
| Raltron | ||||
| CO1 Series 66.666 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator | ||||
| C019100-20.000 | 20MHz | ±100ppm | 5V | 管裝 |
| Raltron | ||||
| CO1 Series 20 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole HCMOS Clock Oscillator | ||||
| C04302-27.000-EXT-T | 27MHz | ±20ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO43 Series 27 MHz 7 x 5 mm 3.3 V ±20 ppm Surface Mount Clock Oscillator | ||||
| C04310-32.000-EXT-T-TR | 卷盤 | |||
| Raltron | ||||
| CO4 Series 32 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||
| C04310-32.000-EXT-TR | 32MHz | ±100ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO43 Series 32 MHz 7 x 5 mm 3.3 V ±100 ppm Surface Mount Clock Oscillator | ||||
| C04610-80.000-T-TR | 80MHz | ±100ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO46 系列 80 MHz 7 x 5 mm 3.3 V ±100 ppm 表面貼裝 時鐘振蕩器 | ||||
| C04810-20.000MHZ-EXT-TR | 20MHz | ±100ppm | 5V | 卷盤 |
| Raltron | ||||
| CO48 Series 20 MHz 7 x 5 mm 5 V ±100 ppm Surface Mount Clock Oscillator | ||||
| CLDPTSH-125.000 | 125MHz | ±50ppm | 2.5V | 散裝 |
| Raltron晶振 | ||||
| Clock Series 125 MHz 2.5V ±50 ppm -0°C TO +70°C SMT LVDS Clock Oscillator | ||||
| CO1050-29.4912 | 29.4912MHz | ±50ppm | 5V | 管裝 |
| Raltron | ||||
| CO1 Series 29.4912 MHz 20.8 x 13.2 mm 5 V ±50 ppm Through Hole Clock Oscillator | ||||
| CO1100-1.8432MHZ | 1.8432MHz | ±100ppm | 5V | 管裝 |
| Raltron | ||||
| CO1 Series 1.8432 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator | ||||
| CO1100-11.0592MHZ | 11.0592MHz | ±100ppm | 5V | 管裝 |
| Raltron | ||||
| CO1 Series 4.9152 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator | ||||
| CO1100-16.000MHZ-T | 16MHz | ±100ppm | 5V | 卷盤 |
| Raltron | ||||
| CO1 Series 16 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole TTL Clock Oscillator | ||||
| CO1100-18.432-T | 18.432MHz | ±100ppm | 5V | 卷盤 |
| Raltron | ||||
| CO1 Series 18.432 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole TTL Clock Oscillator | ||||
| CO1100-18.432-T | 18.432MHz | ±100ppm | 5V | 剪切卷帶 |
| Raltron | ||||
| CO1 Series 18.432 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole TTL Clock Oscillator | ||||
| CO1100-39.3216-T | 39.3216MHz | ±100ppm | 5V | 管裝 |
| Raltron | ||||
| CO1100 系列 39.3216 MHz 100 ppm 0° C至+70° C 時鐘振蕩器 | ||||
| CO1100-4.9152MHZ | 4.9152MHz | ±100ppm | 5V | 散裝 |
| Raltron | ||||
| CO1 Series 4.9152 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator | ||||
| CO1100-4.9152MHZ-40 | 4.9152MHz | ±100ppm | 5V | 托盤 |
| Raltron | ||||
| CO1 Series 4.9152 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole TTL Clock Oscillator | ||||
| CO1100-40.000MHZ | 40MHz | ±100ppm | 5V | 盒裝 |
| Raltron | ||||
| CO1 Series 40 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator | ||||
| CO1100-7.777728MHZ-40 | 7.77773MHz | ±100ppm | 5V | 管裝 |
| Raltron | ||||
| CO1 Series 7.7777 MHz 5 V ±100 ppm -40°C TO +85°C Thru-Hole TTL Clock Oscillator | ||||
| CO1100-70.000 | 70MHz | ±100ppm | 5V | 管裝 |
| Raltron | ||||
| CO1 Series 70 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator | ||||
| CO12050-20.000-EXT | 20MHz | ±50ppm | 5V | 剪切卷帶 |
| Raltron | ||||
| CO1 Series 20.00 MHz 5 V ±50 ppm -40°C TO +85°C Thru-Hole HCMOS Clock Oscillator | ||||
| CO12050-20.000-EXT | 20MHz | ±50ppm | 5V | 管裝 |
| Raltron | ||||
| CO1 Series 20.00 MHz 5 V ±50 ppm -40°C TO +85°C Thru-Hole HCMOS Clock Oscillator | ||||
| CO12100-14.31818MHZ | 14.3182MHz | ±100ppm | 5V | 盒裝 |
| Raltron | ||||
| CO12 Series 14.31818 MHz 13.21x13.21mm 5 V ±100ppm Through Hole Clock Oscillator | ||||
| CO12100-48.000 | 48MHz | ±100ppm | 5V | 袋裝 |
| Raltron | ||||
| CO1 Series 48.0 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole HCMOS Clock Oscillator | ||||
| CO13100-32.000-EXT | 32MHz | ±100ppm | 5V | 盒裝 |
| Raltron | ||||
| CO13 系列 32 MHz 13.21 x 13.21 mm 5 V ±100 ppm 通孔 時鐘振蕩器 | ||||
| CO19050-40.000-T | 40MHz | ±100ppm | 5V | 管裝 |
| Raltron | ||||
| CO1 Series 40 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole HCMOS Clock Oscillator | ||||
| CO2016-20.000-3.3-50-T-TR | 20MHz | ±50ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO2016 系列 2 x 1.6 mm 20 MHz 3.3 V ±50 ppm 表面貼裝 時鐘振蕩器 | ||||
| CO2016-25.000-3.3-50-T-TR | 25MHz | ±50ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO2016 系列 2 x 1.6 mm 25 MHz 3.3 V ±50 ppm 表面貼裝 時鐘振蕩器 | ||||
| CO2016-50.000-3.3-50-T-TR | 50MHz | ±50ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO2016 系列 2 x 1.6 mm 50 MHz 3.3 V ±50 ppm 表面貼裝 時鐘振蕩器 | ||||
| CO4302-25.000-EXT-T-T | 25MHz | ±20ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO4 Series 25 MHz 3.3 V ±20 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||
| CO4302-40.000-T-EXT-TR | 40MHz | ±20ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO43 系列 40 MHz ±20 ppm -40 至 +85°C 嚴格對稱 標準貼裝 時鐘 振蕩器 | ||||
| CO43025-11.184-TR | 11.184MHz | ±25ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO43025 系列 11.184 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面貼裝 振蕩器 | ||||
| CO43025-12.960-TR | 12.96MHz | ±25ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO43025 系列 12.960 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面貼裝 振蕩器 | ||||
| CO43025-14.31818-T | 14.3182MHz | ±25ppm | 3.3V | 盒裝 |
| Raltron石英晶體振蕩器 | ||||
| CO43025 系列 14.31818 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面貼裝 振蕩器 | ||||
| CO43025-14.31818-T-TR | 14.3182MHz | ±25ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO4 Series 14.31818 MHz 3.3 V ±25 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||
| CO43025-16.384-T-TR | 16.384MHz | ±25ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO43025 系列 16.384 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面貼裝 振蕩器 | ||||
| CO43025-20.000-EXT-T-TR | 20MHz | ±25ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO43025 系列 20 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面貼裝 擴展型 振蕩器 | ||||
| CO43025-24.576-T-TR | 24.576MHz | ±25ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO43 Series 24.576 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | ||||
| CO43025-24.704-EXT-T | 24.704MHz | ±25ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO43 Series 24.704 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | ||||
| CO43025-25.000-T-TR | 25MHz | ±25ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO43 Series 25 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | ||||
| CO43025-32.000-EXT-T-TR | 卷盤 | |||
| Raltron | ||||
| CO4 Series 32 MHz 3.3 V ±25 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||
| CO43025S-25.000-EXT-TR | 25MHz | ±25ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO43025 系列 25 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面貼裝 擴展型 振蕩器 | ||||
| CO43025S-27.000-T-TR- L30 | 27MHz | ±25ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO43 Series 27 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | ||||
| CO4305-1.8432MHZ-T | 1.8432MHz | ±50ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO43 Series 1.8432 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator | ||||
| CO4305-10.000-T-TR | 10MHz | ±50ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO4 Series 10 MHz 3.3 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||
| CO4305-11.0592MHZ-T | 11.0592MHz | ±50ppm | 3.3V | 卷盤 |
| Raltron | ||||
| CO4 Series 11.0592 MHz 3.3 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||
| CO4305-11.2896-EXT-T-TR | 11.2896MHz | ±50ppm | 3.3V | 剪切卷帶 |
XCO時鐘振蕩器CO1100-16.000MHZ-T通訊設備專用晶振， Raltron拉隆晶振成立于1983年，現已成為世界上最知名、最有經驗的領先石英晶體和振蕩器設備制造商之一。作為特許經銷商，紐約客電子供應Raltron的天線包括RCA芯片、RDM Dome和RDP雙孔天線；頻率元件包括時鐘振蕩器、晶體和晶體濾波器以及射頻連接器。
