更多>>汽車音響控制器專用晶振Q22FA2380013300
來源：http://www.xckfq.com.cn 作者：康華爾電子 2022年10月08
近幾年互聯網高速發展，隨著5G時代的到來，智能汽車的發展也越發的迅速。汽車電子對晶振的要求比消費類的科技數碼產品高的多，特別是耐高溫這一塊，汽車電子中的晶振最好能在高溫和低溫狀態下正常工作。

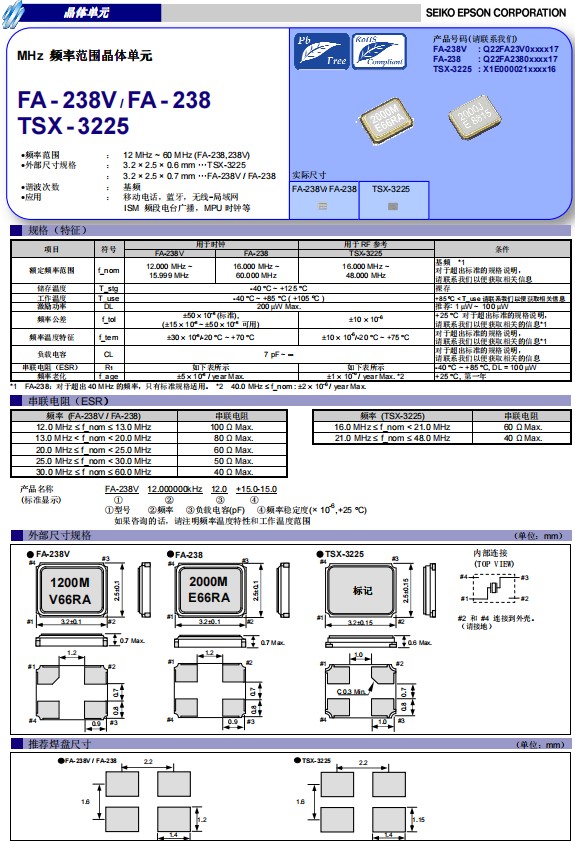

愛普生晶振FA-238是一款小體積尺寸3.2x2.5mm無源晶振，石英晶體諧振器，四腳貼片晶振，頻率范圍16MHz至60MHz，工作溫度-40℃至+85℃（+105℃），具有超小型，輕薄型，耐熱，耐振，耐沖擊等優良的耐環境特性。特別適用于小型便捷式移動通訊，可穿戴設備，智能手機，平板電腦，便捷式電子儀器，汽車電子，智能家居等。
汽車音響控制器專用晶振Q22FA2380013300,Q22FA2380011400,無源晶振
.JPG)
汽車音響控制器專用晶振Q22FA2380013300,Q22FA2380011400,無源晶振
3225mm體積貼片晶振，本產品已被確定的高信賴性最適合用于汽車電子部件，在極端嚴酷的環境條件下也能發揮穩定的起振特性，工作溫度要達到-40到+85℃。常見的3225封裝貼片晶振還有：FA-238A、TSX-3225、FA-238V，FA-238等。
汽車系統中所用的晶振包括音響、藍牙、雷達、時鐘、顯示屏等等不下5處，車載音響中用到的12M或者是16M、26M貼片晶振，時鐘上到的是32.768khz晶振，倒車雷達中也有用到晶振，像3225封裝晶振16M、26M、32M都是雷達中比較常用的。
愛普生晶振FA-238是一款小體積尺寸3.2x2.5mm無源晶振，石英晶體諧振器，四腳貼片晶振，頻率范圍16MHz至60MHz，工作溫度-40℃至+85℃（+105℃），具有超小型，輕薄型，耐熱，耐振，耐沖擊等優良的耐環境特性。特別適用于小型便捷式移動通訊，可穿戴設備，智能手機，平板電腦，便捷式電子儀器，汽車電子，智能家居等。
汽車音響控制器專用晶振Q22FA2380013300,Q22FA2380011400,無源晶振
| 產品編碼 |
  尺寸 |
  型號 |
  貼片晶振 |
  負載電容 |
  精度 |
      頻率公差 |
   工作溫度 |
| Q22FA2380000100 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380000200 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380001100 | 3.2x2.5x0.7mm | FA-238 | 16.934400MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380001300 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380002200 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380002800 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380003500 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 12pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA2380004100 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 20pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380004400 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 7pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380004700 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 7pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380004800 | 3.2x2.5x0.7mm | FA-238 | 49.152000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380006300 | 3.2x2.5x0.7mm | FA-238 | 24.576000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380006500 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380007500 | 3.2x2.5x0.7mm | FA-238 | 50.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380007600 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380007800 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380007900 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380008500 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380008800 | 3.2x2.5x0.7mm | FA-238 | 24.576000MHz | 12pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA2380008900 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380009100 | 3.2x2.5x0.7mm | FA-238 | 18.432000MHz | 20pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380009200 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 20pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380009300 | 3.2x2.5x0.7mm | FA-238 | 18.432000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380009500 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380009800 | 3.2x2.5x0.7mm | FA-238 | 30.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380010300 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380011400 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380012000 | 3.2x2.5x0.7mm | FA-238 | 24.576000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380012700 | 3.2x2.5x0.7mm | FA-238 | 18.432000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380012800 | 3.2x2.5x0.7mm | FA-238 | 18.432000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380012900 | 3.2x2.5x0.7mm | FA-238 | 22.579200MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380013300 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380013700 | 3.2x2.5x0.7mm | FA-238 | 40.000000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380013800 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 8pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380014000 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380014100 | 3.2x2.5x0.7mm | FA-238 | 32.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380014600 | 3.2x2.5x0.7mm | FA-238 | 26.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380014700 | 3.2x2.5x0.7mm | FA-238 | 26.000000MHz | 20pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380014800 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 12pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA2380014900 | 3.2x2.5x0.7mm | FA-238 | 18.432000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380015600 | 3.2x2.5x0.7mm | FA-238 | 24.576000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380016500 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 12pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA2380017000 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 20pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380017900 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 12.5pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380019000 | 3.2x2.5x0.7mm | FA-238 | 24.576000MHz | 8pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380019800 | 3.2x2.5x0.7mm | FA-238 | 24.576000MHz | 7pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380020500 | 3.2x2.5x0.7mm | FA-238 | 19.200000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380021600 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 12pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA2380023800 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 20pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA2380024000 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 30pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380024400 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 20pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA2380024500 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 30pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA2380025100 | 3.2x2.5x0.7mm | FA-238 | 36.864000MHz | 8pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380026300 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 9pF | +/-15ppm | +/-30ppm | -20to+70°C |
| Q22FA2380026400 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380026900 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 9pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380029100 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 7pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380030500 | 3.2x2.5x0.7mm | FA-238 | 24.576000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380031200 | 3.2x2.5x0.7mm | FA-238 | 28.636360MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380032200 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 12.5pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA2380032900 | 3.2x2.5x0.7mm | FA-238 | 32.000000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380033800 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 18pF | +/-15ppm | +/-30ppm | -20to+70°C |
| Q22FA2380035000 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380035300 | 3.2x2.5x0.7mm | FA-238 | 33.330000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380035500 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 7pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA2380035600 | 3.2x2.5x0.7mm | FA-238 | 45.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380036400 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 7pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA2380036700 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380040500 | 3.2x2.5x0.7mm | FA-238 | 40.000000MHz | 10pF | +/-50ppm | +/-50ppm | -20to+70°C |
| Q22FA2380041500 | 3.2x2.5x0.7mm | FA-238 | 27.120000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380041900 | 3.2x2.5x0.7mm | FA-238 | 40.000000MHz | 7pF | +/-50ppm | +/-50ppm | -20to+70°C |
| Q22FA2380042100 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380042300 | 3.2x2.5x0.7mm | FA-238 | 30.000000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380043200 | 3.2x2.5x0.7mm | FA-238 | 50.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380044700 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA2380044800 | 3.2x2.5x0.7mm | FA-238 | 50.000000MHz | 7pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380045800 | 3.2x2.5x0.7mm | FA-238 | 16.384000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380046400 | 3.2x2.5x0.7mm | FA-238 | 33.333000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380047800 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 18pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA2380048000 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA2380048300 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 10pF | +/-20ppm | +/-30ppm | -40to+85°C |
| Q22FA2380048900 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 10pF | +/-20ppm | +/-30ppm | -40to+85°C |
| Q22FA2380054700 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 16pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA2380055300 | 3.2x2.5x0.7mm | FA-238 | 30.000000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380057300 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 10pF | +/-50ppm | +/-50ppm | -20to+70°C |
| Q22FA2380059100 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 8pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380059400 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 8pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380059900 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 16pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA2380060800 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 7pF | +/-50ppm | +/-50ppm | -20to+70°C |
| Q22FA2380061200 | 3.2x2.5x0.7mm | FA-238 | 44.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380062000 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 8pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380065300 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 7pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380066600 | 3.2x2.5x0.7mm | FA-238 | 18.432000MHz | 7pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380067800 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 20pF | +/-30ppm | +/-30ppm | -20to+70°C |
3225mm體積貼片晶振，本產品已被確定的高信賴性最適合用于汽車電子部件，在極端嚴酷的環境條件下也能發揮穩定的起振特性，工作溫度要達到-40到+85℃。常見的3225封裝貼片晶振還有：FA-238A、TSX-3225、FA-238V，FA-238等。
汽車系統中所用的晶振包括音響、藍牙、雷達、時鐘、顯示屏等等不下5處，車載音響中用到的12M或者是16M、26M貼片晶振，時鐘上到的是32.768khz晶振，倒車雷達中也有用到晶振，像3225封裝晶振16M、26M、32M都是雷達中比較常用的。
