首頁歐美晶振 FOX晶振FOX低損耗晶體,遙遙領先的車載氛圍燈系統晶振,FC1BACBEI20.0-T3晶振

FOX低損耗晶體,遙遙領先的車載氛圍燈系統晶振,FC1BACBEI20.0-T3晶振

編號：68601682
頻率：20MHz

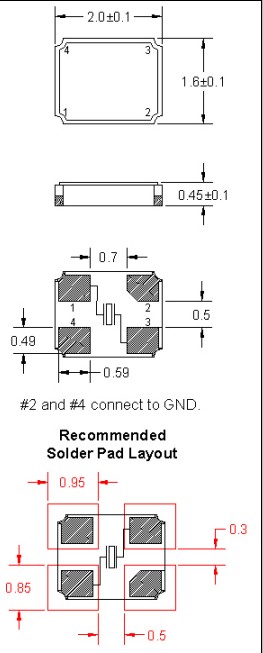

尺寸：2016mm

FOX低損耗晶體,遙遙領先的車載氛圍燈系統晶振,FC1BACBEI20.0-T3晶振,美國FOX晶振公司，高品質晶振，石英晶體諧振器，進口晶振，四腳晶振，SMD晶振，貼片晶振，石英晶振，高可靠晶振，環保晶振，小體積晶振，6G通訊設備...

分享到

FOX低損耗晶體,遙遙領先的車載氛圍燈系統晶振,FC1BACBEI20.0-T3晶振,美國FOX晶振公司，高品質晶振，石英晶體諧振器，進口晶振，四腳晶振，SMD晶振，貼片晶振，石英晶振，高可靠晶振，環保晶振，小體積晶振，6G通訊設備晶振，室外6G基站晶振，2016晶振，無人機遙控晶振。超小型晶振是高可靠的環保性能,嚴格的頻率分選,編帶盤裝,可應用于高速自動貼片機焊接,產品本身設計合理,成本和性能良好,產品被廣泛應用于平板電腦,MP5,數碼相機,USB接口最佳選擇,包含RoHS指令豁免的密封玻璃中的鉛.2016尺寸貼片晶振系列，在生產時就得對每項生產工藝嚴格把關，對每項參數做到標準檢測，有一項不完善都會使晶片的邊緣效應不能去除，而晶片的諧振電阻過大，用在電路中Q值過小，從而電路不能振動或振動不穩定。

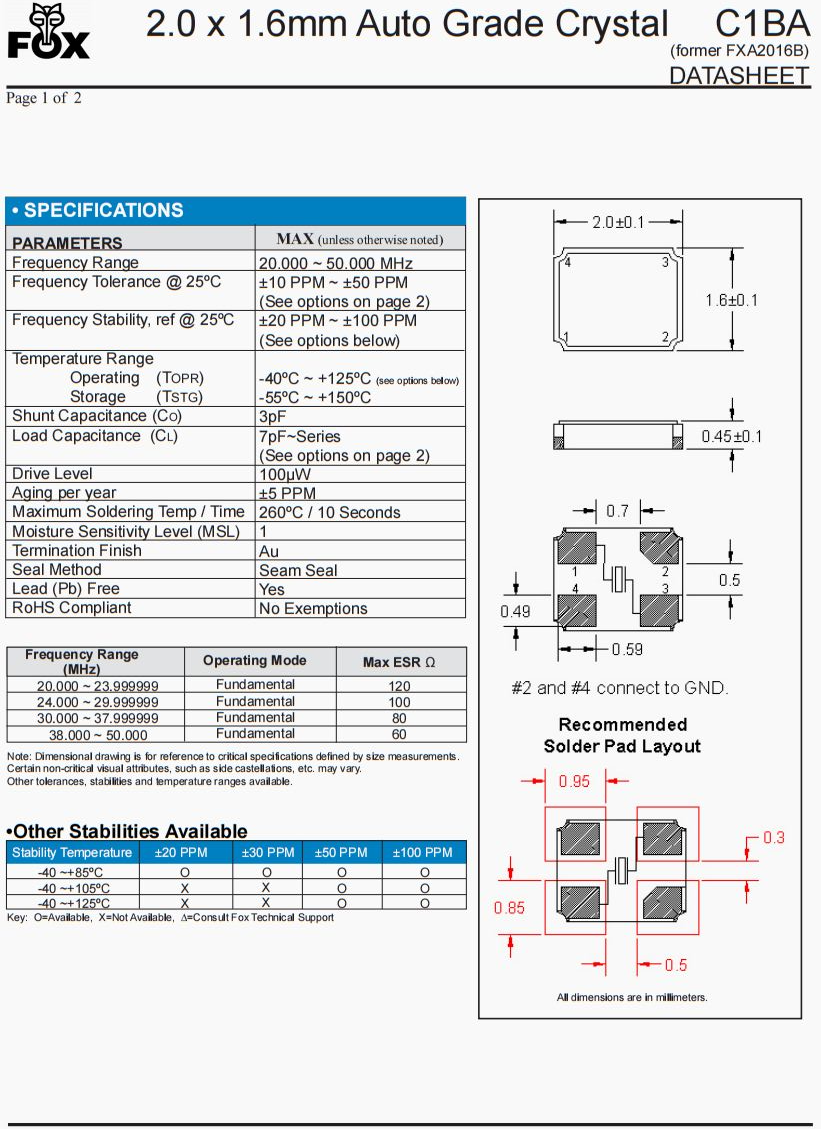

FOX低損耗晶體,遙遙領先的車載氛圍燈系統晶振,FC1BACBEI20.0-T3晶振

參數	MAX (unless otherwise noted)
頻率范圍	20.000 ~ 50.000 MHz
頻率容差	±10 PPM ~ ±50 PPM(See options on page 2)
頻率穩定度	±20 PPM ~ ±100 PPM(See options below)
工作溫度范圍	-40ºC ~ +125ºC (see options below)
儲存溫度范圍	-55ºC ~ +150ºC
分流電容	3pF
負載電容	7pF~Series(See options on page 2)
驅動電平	100µW
老化	±5 PPM
最大焊接溫度/時間	260ºC / 10 Seconds
濕度敏感性水平	1
終止完成	Au
密封方式	Seam Seal
無鉛	Yes
符合RoHS	No Exemptions

FOX低損耗晶體,遙遙領先的車載氛圍燈系統晶振,FC1BACBEI20.0-T3晶振

FOX原廠編碼	生產商	型號	頻率	頻率穩定度	頻率容差
FC4SDCBMF10.0-T1	Fox晶振	HC49SDLF	10 MHz	±50ppm	±30ppm
FC4SDCBMF8.0-T1	Fox晶振	HC49SDLF	8 MHz	±50ppm	±30ppm
FC4SDCBMF3.6864-T1	Fox晶振	HC49SDLF	3.6864 MHz	±50ppm	±30ppm
FKFSREIHM0.032768-T3	Fox晶振	FSRLF	32.768 kHz	-	±20ppm
FC4STCBMF20.0	Fox晶振	HC49SLF	20 MHz	±50ppm	±30ppm
FK135EIHM0.032768-T3	Fox晶振	K135	32.768 kHz	-	±20ppm
FC5BQCCMC12.0-T1	Fox晶振	C5BQ	12 MHz	±30ppm	±30ppm
FC5BQCCMM25.0-T1	Fox晶振	C5BQ	25 MHz	±30ppm	±30ppm
FC5BQCCMM12.0-T1	Fox晶振	C5BQ	12 MHz	±50ppm	±30ppm
FC7BSCCMM8.0-T1	Fox晶振	C7BS	8 MHz	±30ppm	±30ppm
FC7BSCCMM7.3728-T1	Fox晶振	C7BS	7.3728 MHz	±30ppm	±30ppm
FKFSXEIHM0.032768-T3	Fox晶振	FSXLF	32.768 kHz	-	±20ppm
FKFSREIBM0.032768-T3	Fox晶振	FSRLF	32.768 kHz	-	±20ppm
FC8AQCCMC3.6864-T1	Fox晶振	FC8AQ	3.6864 MHz	±30ppm	±30ppm
FC8AQCCMC4.0-T1	Fox晶振	FC8AQ	4 MHz	±30ppm	±30ppm
FC4SDCBMF11.0592-T1	Fox晶振	HC49SDLF	11.0592 MHz	±50ppm	±30ppm
FC4SDCBMF25.0-T1	Fox晶振	HC49SDLF	25 MHz	±50ppm	±30ppm
FC4SDCBMF16.0-T1	Fox晶振	HC49SDLF	16 MHz	±50ppm	±30ppm
FC4SDCBMF12.0-T1	Fox晶振	HC49SDLF	12 MHz	±50ppm	±30ppm
FC4SDCBMF24.0-T1	Fox晶振	HC49SDLF	24 MHz	±50ppm	±30ppm
FC4SDCBMM25.0-T1	Fox晶振	HC49SDLF	25 MHz	±50ppm	±30ppm
FC4SDCBMF14.7456-T1	Fox晶振	HC49SDLF	14.7456 MHz	±50ppm	±30ppm
FC4SDCBMM8.0-T1	Fox晶振	HC49SDLF	8 MHz	±50ppm	±30ppm
FC4SDCBMF7.3728-T1	Fox晶振	HC49SDLF	7.3728 MHz	±50ppm	±30ppm
FC4SDCBMF6.0-T1	Fox晶振	HC49SDLF	6 MHz	±50ppm	±30ppm
FC4SDCBMF4.0-T1	Fox晶振	HC49SDLF	4 MHz	±50ppm	±30ppm
FC3BQBBME12.0-T3	Fox晶振	FQ3225B	12 MHz	±50ppm	±50ppm
FC3BQBBMM25.0-T3	Fox晶振	FC3BQ	25 MHz	±50ppm	±50ppm
FKT38EIHD0.032768	Fox晶振	NC38LF	32.768 kHz	-	±20ppm
FC4STCBMF10.0	Fox晶振	HC49SLF	10 MHz	±50ppm	±30ppm
FC4STCBMF25.0	Fox晶振	HC49SLF	25 MHz	±50ppm	±30ppm
FC4STCBMF16.0	Fox晶振	HC49SLF	16 MHz	±50ppm	±30ppm
FC4STCBMF12.0	Fox晶振	HC49SLF	12 MHz	±50ppm	±30ppm
FC4STCBMF11.0592	Fox晶振	HC49SLF	11.0592 MHz	±50ppm	±30ppm
FC4STCBMF8.0	Fox晶振	HC49SLF	8 MHz	±50ppm	±30ppm
FC4STCBMF7.3728	Fox晶振	HC49SLF	7.3728 MHz	±50ppm	±30ppm
FC4STCBLF3.579545	Fox晶振	HC49SLF	3.579545 MHz	±50ppm	±30ppm
FC4STCBMF4.0	Fox晶振	HC49SLF	4 MHz	±50ppm	±30ppm
FC4STCBMF3.6864	Fox晶振	HC49SLF	3.6864 MHz	±50ppm	±30ppm
FKT26EIHD0.032768	Fox晶振	NC26LF	32.768 kHz	-	±20ppm
FKT38EIHQ0.032768	Fox晶振	NC38LF	32.768 kHz	-	±20ppm
FC5BQCCMC25.0-T1	Fox晶振	C5BQ	25 MHz	±30ppm	±30ppm
FC5BQCCMC24.0-T1	Fox晶振	C5BQ	24 MHz	±30ppm	±30ppm
FC5BQCCMC20.0-T1	Fox晶振	C5BQ	20 MHz	±30ppm	±30ppm
FC5BQCCMC16.0-T1	Fox晶振	C5BQ	16 MHz	±30ppm	±30ppm
FC7BSCCMC8.0-T1	Fox晶振	C7BS	8 MHz	±30ppm	±30ppm
FC7BSCCMM6.0-T1	Fox晶振	C7BS	6 MHz	±30ppm	±30ppm
FC7BSCCMC7.3728-T1	Fox晶振	C7BS	7.3728 MHz	±30ppm	±30ppm
FC8AQCCMC6.0-T1	Fox晶振	FC8AQ	6 MHz	±30ppm	±30ppm
FC4SDCBMF12.288-T1	Fox晶振	HC49SDLF	12.288 MHz	±50ppm	±30ppm
FC4SDCBMM16.0-T1	Fox晶振	HC49SDLF	16 MHz	±50ppm	±30ppm
FC4SDCBMF18.432-T1	Fox晶振	HC49SDLF	18.432 MHz	±50ppm	±30ppm
FC4SDCBLF3.579545-T1	Fox晶振	HC49SDLF	3.579545 MHz	±50ppm	±30ppm
FC4SDCBMM4.0-T1	Fox晶振	HC49SDLF	4 MHz	±50ppm	±30ppm
FC2BSBBMM16.0-T3	Fox晶振	FX252B	16 MHz	±50ppm	±50ppm
FC4STCBMF18.432	Fox晶振	HC49SLF	18.432 MHz	±50ppm	±30ppm
FC4STCBMF14.7456	Fox晶振	HC49SLF	14.7456 MHz	±50ppm	±30ppm
FKT26EIHQ0.032768	Fox晶振	NC26LF	32.768 kHz	-	±20ppm
