D53G-020.0M|TCXO晶振振蕩器|6G路由器晶振

編號：51278757
頻率：20MHz
尺寸：5.0×3.2mm

歐美進口晶振,ConnorWinfield晶振,D53G有源晶振,D53G-020.0M晶振,5032mm晶振,TCXO晶體振蕩器,SMD晶振,頻率20MHz,電壓3.3V,工作溫度-30~85°C,頻率穩定性0.5ppm,低老化晶振,低相噪晶振,6G路由器晶振,智能穿戴晶振,物聯...

分享到

D53G-020.0M|TCXO晶振振蕩器|6G路由器晶振,歐美進口晶振,ConnorWinfield晶振,D53G有源晶振,D53G-020.0M晶振,5032mm晶振,TCXO晶體振蕩器,SMD晶振,頻率20MHz,電壓3.3V,工作溫度-30~85°C,頻率穩定性0.5ppm,低老化晶振,低相噪晶振,6G路由器晶振,智能穿戴晶振,物聯網晶振,移動通信晶振.

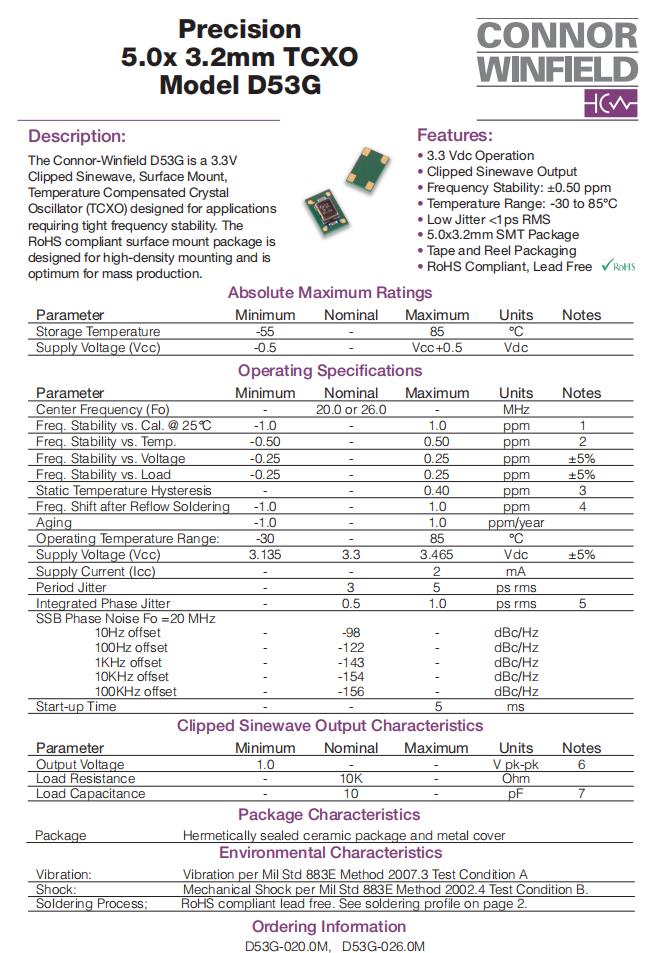

D53G-020.0M|TCXO晶振振蕩器|6G路由器晶振特點：
•3.3 Vdc操作
•削波正弦波輸出邏輯
•頻率穩定性：±0.50ppm
•溫度范圍: -30至85°C
•低抖動< 1ps RMS
•5.0×3.2mm SMT封裝
•符合RoHS標準/無鉛
•帶卷包裝

D53G-020.0M|TCXO晶振振蕩器|6G路由器晶振 參數表

項目	規格說明
額定頻率	20MHz
頻率公差 @ 25ºC	1 ppm
電源電壓變化(Vcc±5%)	±0.025ppm
負載系數(±5%）	±0.025ppm
電源電壓(Vcc)	3.3V
電源電流(Icc)	2mA Max
周期抖動	5ps rms Max
積分相位抖動(帶寬=12 Khz至20 MHz)	1ps rms Max
20 MHz時的典型單邊帶相位噪聲： @ 10Hz offset @ 100Hz offset @ 1KHz offset @ 10KHz offset @ 100KHz offset	-98dBc/Hz -122dBc/Hz -143dBc/Hz -154dBc/Hz -156dBc/Hz
輸入阻抗	50K Ohm
工作溫度	-30~+85°C
負載	10pF // 10 KOhm
每年老化	±1ppm
等效串聯電阻@ 25 °C	50 Ohms max.
儲存溫度	-55~125°C

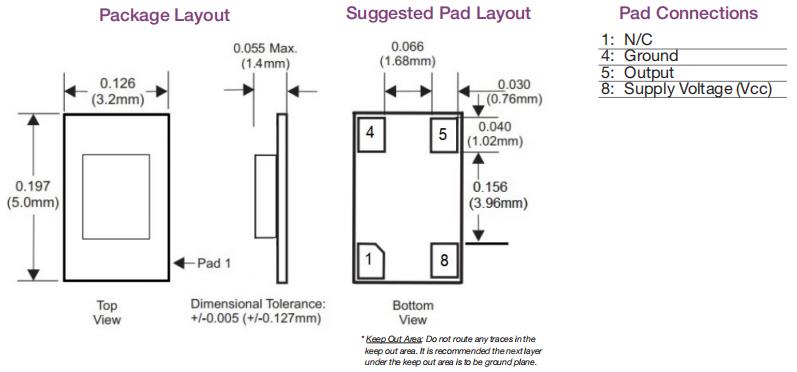

D53G-020.0M|TCXO晶振振蕩器|6G路由器晶振 尺寸圖

原廠編碼	生產廠家	型號	頻率	頻率穩定度	頻率偏差	負載電容	ESR電阻	工作溫度
CS-018-114.285M	Connor-Winfield	CS-018	114.285MHz	±100ppm	±100ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-018-114.285M	Connor-Winfield	CS-018	114.285MHz	±100ppm	±100ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-018-114.285M	Connor-Winfield	CS-018	114.285MHz	±100ppm	±100ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-023-114.285M	Connor-Winfield	CS-023	114.285MHz	±20ppm	±20ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-023-114.285M	Connor-Winfield	CS-023	114.285MHz	±20ppm	±20ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-023-114.285M	Connor-Winfield	CS-023	114.285MHz	±20ppm	±20ppm	18pF	80 Ohm	-40°C ~ 85°C
XL-1C-010.0M	Connor-Winfield	XL-1C	10MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-010.0M	Connor-Winfield	XL-1C	10MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-010.0M	Connor-Winfield	XL-1C	10MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-012.0M	Connor-Winfield	XL-1C	12MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-012.0M	Connor-Winfield	XL-1C	12MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-012.0M	Connor-Winfield	XL-1C	12MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-020.0M	Connor-Winfield	XL-1C	20MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-020.0M	Connor-Winfield	XL-1C	20MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-020.0M	Connor-Winfield	XL-1C	20MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-016.0M	Connor-Winfield	XL-1C	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-016.0M	Connor-Winfield	XL-1C	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-016.0M	Connor-Winfield	XL-1C	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-012.0M	Connor-Winfield	XM-1	12MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-012.0M	Connor-Winfield	XM-1	12MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-012.0M	Connor-Winfield	XM-1	12MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-016.0M	Connor-Winfield	XM-1	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-016.0M	Connor-Winfield	XM-1	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-016.0M	Connor-Winfield	XM-1	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-010.0M	Connor-Winfield	XM-1	10MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-010.0M	Connor-Winfield	XM-1	10MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-010.0M	Connor-Winfield	XM-1	10MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
CS-034-040.0M	Connor-Winfield	CS-034	40MHz	±50ppm	±30ppm	10pF	25 Ohm	-40°C ~ 85°C
CS-034-040.0M	Connor-Winfield	CS-034	40MHz	±50ppm	±30ppm	10pF	25 Ohm	-40°C ~ 85°C
CS-034-040.0M	Connor-Winfield	CS-034	40MHz	±50ppm	±30ppm	10pF	25 Ohm	-40°C ~ 85°C
CS-043-048.0M	Connor-Winfield	CS-043	48MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-043-048.0M	Connor-Winfield	CS-043	48MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-043-048.0M	Connor-Winfield	CS-043	48MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-044-054.0M	Connor-Winfield	CS-044	54MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-044-054.0M	Connor-Winfield	CS-044	54MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-044-054.0M	Connor-Winfield	CS-044	54MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
XL-1C-018.432M	Connor-Winfield	XL-1C	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-018.432M	Connor-Winfield	XL-1C	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-018.432M	Connor-Winfield	XL-1C	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-018.432M	Connor-Winfield	XM-1	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-018.432M	Connor-Winfield	XM-1	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-018.432M	Connor-Winfield	XM-1	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
CS-018-114.285MHZ	Connor-Winfield	CS-018	114.285MHz	±100ppm	±100ppm	18pF	80 Ohm	-40°C ~ 85°C
